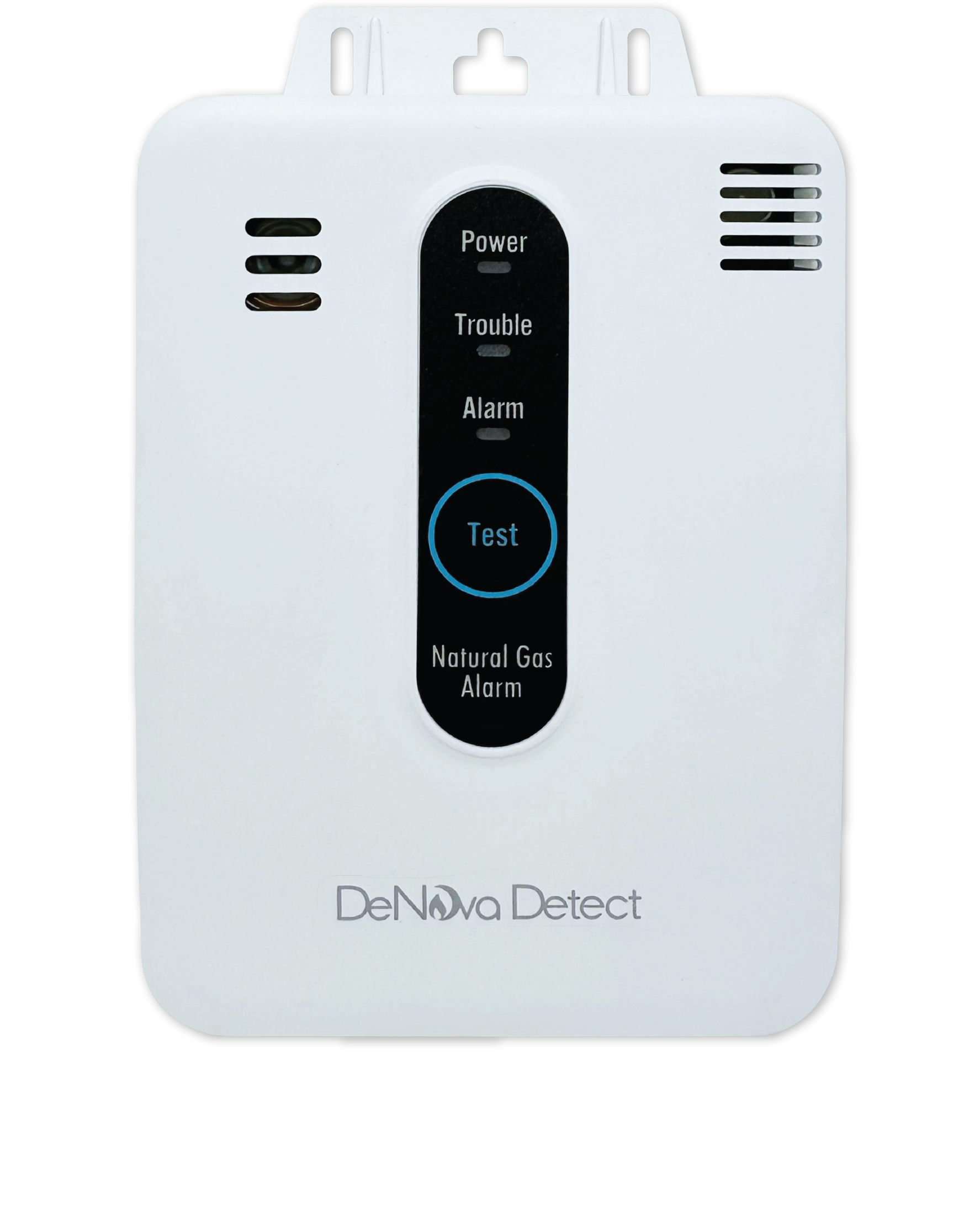

DeNova Detect Smarter Gas Leak Safety Products Will Be Available Soon.
Key Features
- 10% LEL gas alarm threshold alerts you to emergencies much sooner with 11 minutes more alert time on average than a 25% LEL gas alarm threshold, validated by Fire & Risk Alliance
- 1% LEL interval alarm payload data to get more real time information on a gas leak
- Virtually eliminates nuisance alarms caused by harsh household chemicals, such as laundry detergent, disinfectant spray, aerosol hairspray, furniture polish, among others, validated by GTI testing
- Micro-Electro Mechanical System (MEMS) sensor provides accurate and faster Methane gas detection than other sensors
* Remote self-diagnostics * No calibration needed
- 10-year battery and product service life
- Battery-Powered device enables installation close to ceiling (where natural gas is more accurately detected, as natural gas is lighter than air and rises towards the ceiling) without the need for a cosmetically displeasing cord
- Operates in temperature ranges from 32°F to 122°F and a humidity range of 5% to 95% RH, non-condensing
- Voice alert in English and Spanish
- UL 1484 Standard compliant
Integrated wireless communication module enables robust, reliable and secure remote monitoring
• Communication architecture compatible with Itron network
• Sub-GHz module provides superior range performance
• Proven wireless technology ensures reliable communications
• Multi-layer encryption and security
DeNova Detect Natural Gas Alarms seamlessly integrate with the wireless LoRaWAN network and Itron Advanced Metering Infrastructure (AMI). We also offer non-wireless alarms.
Videos
Specifications
Model Number | 810NIT
Conforming standards | FCC certified and compliant with UL 1484, MEMS sensor listed with UL 2075
Detection principle | MEMS hot-wire semiconductor sensor
Target gas | Natural Gas (Methane)
Operating temperature range | 32ºF (0ºC) to 122ºF (50ºC)
Operating humidity range | 5% to 95%, no condensation
Power supply | 3V Lithium battery
Alarm level | 10% LEL*
Speaker output | Gas alarm: 85 dB @ 10 ft
Battery lifetime | Approximately 10 years
Dimensions | W 85mm x H 115mm x D 28mm
Installation | Pipe mount by cable ties or wall mount with included hardware
* LEL, short for “Lower Explosive Limit”, is defined as the lowest concentration (by percentage) of a gas or vapor in air that is capable of producing a flash of fire in presence of an ignition source (arc, flame, heat).
Key Features
- 10% LEL gas alarm threshold alerts you to emergencies much sooner with 11 minutes more alert time on average than a 25% LEL gas alarm threshold, validated by Fire & Risk Alliance
- 1% LEL interval alarm payload data to get more real time information on a gas leak
- Virtually eliminates nuisance alarms caused by harsh household chemicals, such as laundry detergent, disinfectant spray, aerosol hairspray, furniture polish, among others, validated by GTI testing
- Micro-Electro Mechanical System (MEMS) sensor technology provides accurate and faster detection of Methane gas than traditional type sensors
* Remote self-diagnostics * No calibration needed
- 10-year battery and product service life
- Battery-Powered device enables installation close to ceiling (where natural gas is more accurately detected, as natural gas is lighter than air and rises towards the ceiling) without the need for a cosmetically displeasing cord
- Operates in temperatures ranging from 32°F to 122°F and a humidity range of 5% to 95% RH, non-condensing
- Voice alerts to announce warnings
- UL 1484 Standard compliant
Integrated wireless communication module enables robust, reliable and secure remote monitoring
- Incorporated Semtech’s LoRa radio, the SX1262, for remote monitoring
- Sub-GHz module provides superior range performance
- Proven wireless technology ensures reliable and securecommunications without geographical limitations
DeNova Detect Natural Gas Alarms seamlessly integrate with the wireless LoRaWAN network and Itron Advanced Metering Infrastructure (AMI). We also offer non-wireless alarms.
Videos
Specifications
Model Number | 810NLR
Conforming standards | Compliant with UL 1484, MEMS sensor listed with UL 2075
Detection principle | MEMS hot-wire semiconductor sensor
Target gas | Natural Gas (Methane)
Operating temperature range | 32ºF (0ºC) to 122ºF (50ºC)
Operating humidity range | 5% to 95%, no condensation
Power supply | 3V Lithium battery
Alarm level | 10% LEL*
Speaker output | Gas alarm: 85 dB @ 10 ft
Battery lifetime | Approximately 10 years
Dimensions | W 85mm x H 115mm x D 28mm
Installation | Pipe mount by cable ties or wall mount with included hardware
* LEL, short for “Lower Explosive Limit”, is defined as the lowest concentration (by percentage) of a gas or vapor in air that is capable of producing a flash of fire in presence of an ignition source (arc, flame, heat).
